Small portable weather station, also known as portable weather or portable automatic weather station, is compact and can be easily carried in a backpack or pocket, truly realizing portability and real-time monitoring of various meteorological data

1. Product Introduction

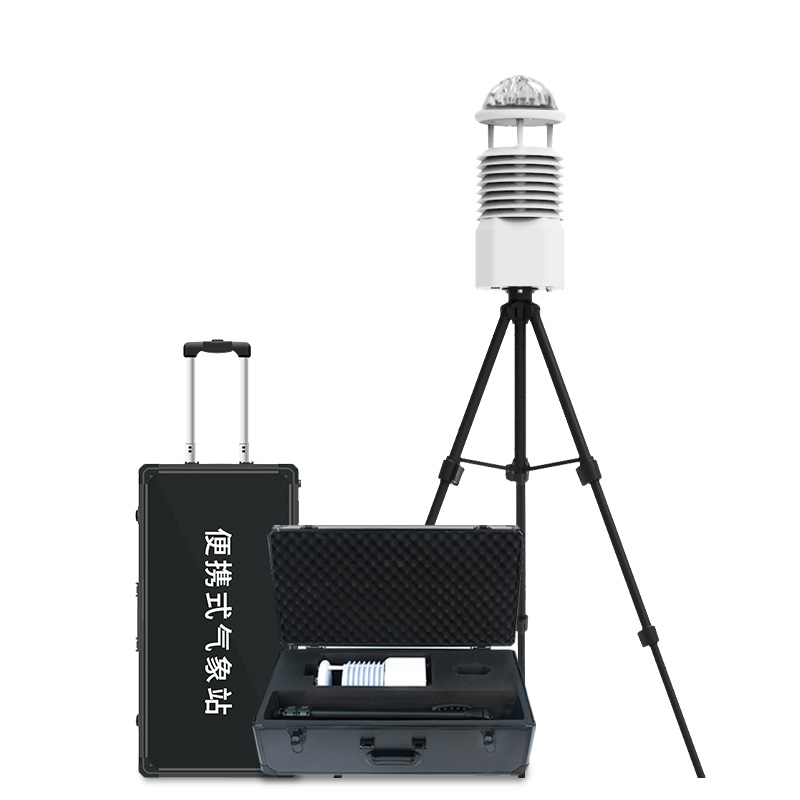

The WX-BXQX8 portable weather station (with provincial CMA certificate) is a high-precision automatic weather observation device that is highly integrated, low-power, can be quickly installed, and is easy to use for field monitoring.

The device supports wired, Bluetooth, GPRS and other transmission methods, is debugging-free, can be quickly deployed, and is suitable for obtaining meteorological data such as various emergency short-term meteorological observations and mobile meteorological monitoring. It is widely used in meteorology, agriculture and forestry, environmental protection, ocean, airports, ports, scientific investigations, campus education and other fields .

The device uses an eight-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, PM2.5 , PM10 , and noise. The sensor casing is made of imported ABS material, which is more effective against salt spray and other environments, and the protection level reaches IP65 or above.

2. Product Features

1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid being blocked by natural wind.

2. The principle is to transmit continuous frequency-converting ultrasonic signals and detect wind speed and direction by measuring the relative phase.

3. Integrated sensor for wind speed, wind direction, temperature, humidity, air pressure, PM2.5 , PM10 and noise

4. Standard GPRS , Bluetooth, 485 to USB transmission methods

5. Aluminum alloy bracket, retractable

6. Shock-absorbing protective trolley case, easy to carry

7. Can work around the clock, unaffected by heavy rain, snow, and frost

8. High measurement accuracy, stable performance, the sensor has no moving parts, anti-pollution and corrosion resistance;

9. The instrument itself is light, easy to carry, and simple to install and disassemble.

3. Technical parameters

1. Wind speed (standard): Range: 0-60m/s; Resolution: 0.01m/s; Accuracy: ±0.1m/s (Beijing Meteorological Calibration Certificate)

2. Wind direction (standard): Range: 0-360°; Resolution: 1°; Accuracy: ±2° (Beijing Meteorological Calibration Certificate)

3. Air temperature (standard): Range: -40-60℃; Resolution 0.01℃; Accuracy: ±0.3℃ (25℃) (Beijing Meteorological Calibration Certificate)

4. Air humidity (standard): Range: 0-100%RH; Resolution: 0.01%RH; Accuracy: ±3%RH (Beijing Meteorological Calibration Certificate)

5. Atmospheric pressure (standard): Range: 30-110Kpa; Resolution 0.01Kpa; Accuracy: ±0.25% (Beijing Meteorological Calibration Certificate)

6.PM2.5 (standard): Range: 0-1000ug/m³; Resolution: 1ug/m³; Accuracy: ±10% (<500 micrograms)

7.PM10 (standard): Range: 0-1000ug/m³; Resolution: 1ug/m³; Accuracy: ±10% (<500 micrograms)

8. Noise (standard): Range: 30-120dB; Resolution 0.1dB; Accuracy: ±1.5dB

9. Other optional elements : piezoelectric rainfall, TSP, carbon monoxide, sulfur dioxide, nitrogen dioxide, ozone, illuminance, optical rainfall, total radiation, carbon dioxide, oxygen content, hydrogen sulfide, hydrogen, chlorine, ammonia, hydrogen chloride, hydrogen cyanide, hydrogen fluoride, phosphine, chlorine dioxide, ethylene oxide, nitric oxide, hydrogen peroxide, tetrahydrothiophene, formaldehyde, VOC, catalytic combustion combustible gas

10. Built-in Bluetooth, can connect to Android phones

11. Wired transmission: 485 to USB , can be directly connected to the computer

12. Data storage: no less than 500,000 records

13. Power consumption: 1.5W

14. Lithium battery: removable lithium battery pack, capacity 12000maH , battery life ≥ 50h , built-in power display function

15.Total weight: ≤ 5kg

16. Installation time: One person can complete the installation within 2 minutes

17. Bracket: Aluminum alloy bracket, foldable and retractable

18. Matching shock-absorbing protective instrument box (tie rod optional)

19. The whole machine has obtained the provincial third-party test report

20. The whole machine has obtained the China Energy-saving and Environmental Protection Product Certification

21. The whole machine has obtained the China Green Environmental Protection Product Certification

22. The manufacturer has ISO quality management system, environmental management system, and occupational health management system certification

23. The manufacturer has a computer software registration certificate

24. The manufacturer is a 3A-level credit enterprise

25. The manufacturer is a five-star after-sales service advanced unit

4. Outer box dimensions

5. Product Structure Diagram

6. Dimensions

7. Introduction to host computer software

1. PC stand-alone version of data receiving, storage, viewing and analysis software

2. Support serial port data reception, processing and display

3. Support json string, modbus485 and other communication methods

4. The storage time can be set by yourself. The acquisition time can be set by yourself in modbus485 acquisition mode

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.

6. Support data post-processing function

7. Support external running of javascript scripts

8. Android APP Introduction

1. Android stand-alone data receiving, storage, viewing and analysis software

2. Support Bluetooth data reception

3. The software receives and processes the data in the background after the phone goes into sleep mode

4. Automatically add devices with json data, and add devices with modbus devices by scanning codes

5. Support historical data viewing, analysis, and table export, support curve display, and single data point viewing.

6. Support data post-processing function

7. Support external running of javascript scripts

IX . Cloud Platform Introduction

1. CS architecture software platform, supports direct observation via mobile phone and PC browser , no need to install additional software.

2. Support multiple accounts and multiple devices to log in

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and view device information.

7. Support data curve analysis

8. Support data export in table format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11. Support external running of javascript scripts
