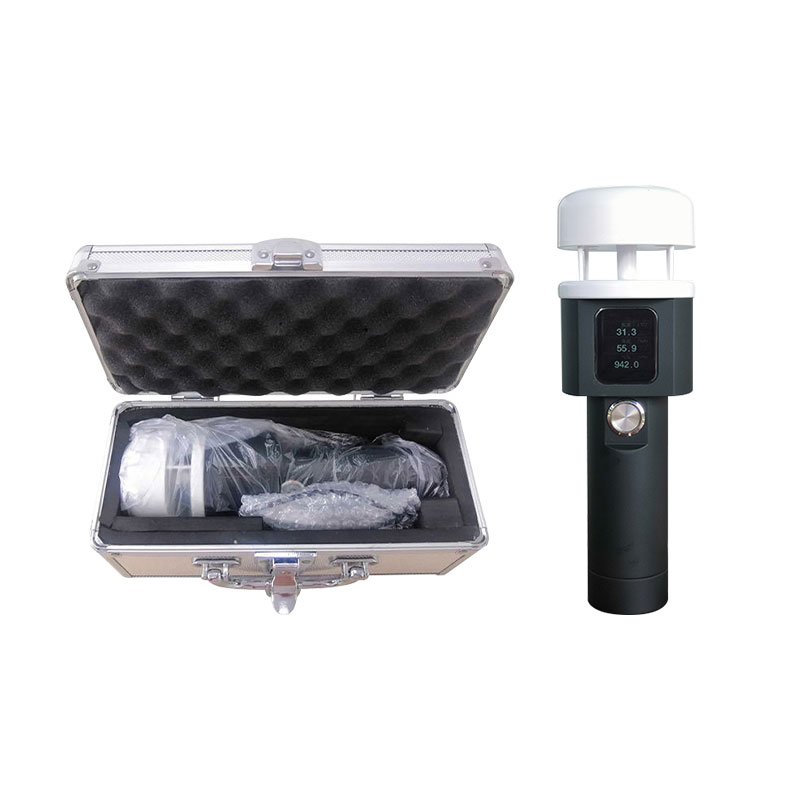

Ultrasonic handheld meteorological station, also known as ultrasonic handheld meteorological instrument, is a compact and portable instrument that accurately measures wind speed and direction. It can be used in the field of meteorological observation and provides valuable first-hand information for meteorological forecasting

1、 Ultrasonic handheld meteorological station Product Introduction

WX-SQ5A uses the time difference of ultrasonic propagation in the air to measure wind speed and direction

Real time monitoring of air temperature, humidity, atmospheric pressure, wind speed, wind direction, altitude (optional)

The weather station comes with a built-in display screen that can display real-time detection data. It is lightweight (with an engineering plastic ABS shell), sturdy and durable, without any moving parts, and does not require maintenance or on-site calibration. Specially designed handle, convenient for users to hold with one hand, weighing only 0.85kg. Built in Bluetooth module, can use the manufacturer's dedicated APP mobile software to receive real-time detection data on the phone; The internal storage module of the instrument can store up to 365 days of monitoring data, making it particularly suitable for field inspections.

2、 Ultrasonic handheld meteorological station Product Features

No moving parts, zero wear and tear

Maintenance free, long service life

Adopting ultrasonic probe reflection type, the structure is more compact

Internally powered by detachable standard 18650 rechargeable lithium batteries

Optional temperature, humidity, and atmospheric pressure sensors

Built in Bluetooth transmission module

3、 Typical applications

Handheld meteorological multi-element detection

Mobile inspection

Electric power safety inspection

Ship, dock and navigation inspection

Urban environmental monitoring

4、 Parameters

Wind speed: measurement range 0-40m/s, resolution 0.1m/s, measurement accuracy ± 5%

Wind direction: measurement range 0-359 ° without blind spots, resolution 1 °, measurement accuracy ± 3 °

Measurement principle: Ultrasonic Time Difference Method

Air temperature: measurement range -40 ℃ -+80 ℃, resolution 0.1 ℃, measurement accuracy 1 ℃

Air humidity: measurement range 0-100%, resolution 0.1, measurement accuracy 4%

Measurement principle: Gap type temperature measuring element, capacitance polymer, humidity measurement

Atmospheric pressure: measurement range of 300-1100hPa, resolution of 0.1hPa, measurement accuracy of ± 2 hPa

Altitude: Measurement range -500 to 9000 meters, resolution of 1 meter, measurement accuracy ± 6% (optional)

Measurement principle: Capacitive MEMS sensor

Data output: Bluetooth, output specification BLE4.0

Internal power supply: 18650 rechargeable lithium battery (factory standard with one battery, up to three batteries can be installed)

Charging interface: lithium battery with external charging adapter

Working hours: When fully charged (1 18650 lithium battery), it can work continuously for 24 hours

Dimensions: Ø 82 * 249mm
